Remote Debugging the MSP-EXP430G2 LaunchPad from TI

Remote Debugging in GDB

There is an inbuilt ability for gdb to also debug programs that reside in remote machines using a gdb-specific protocol. The remote machine is connected to the host via a serial line, or through a port. This remote connection is called a gdb proxy.

While inside gdb, give as:
    (gdb) target remote localhost:2000

This would enable gdb to perform all debugging operations on a program connected to the localhost machine through the port 2000.

There is a prerequisite that the machine that is to be present in the same port must have set permissions for an external debugger.

Sample Program

Fig 1. Sample program - led1.c

This sample program named 'led1.c', is only used to demonstrate remote debugging.

The Preparation

Connect the LaunchPad to the system. Now the sample program is cross-compiled, and downloaded into the LaunchPad.
For further details, refer:
switching-on-launchpad-leds.html

For necessary reasons, I am calling the current terminal, "Terminal1".

The 'mspdebug' has a built-in command that enables it to run a GDB remote stub on a specified TCP/IP port. If no port is specified, 2000 is taken as default.

Give as:
    (mspdebug) gdb

A message will be displayed as:
    Bound to port 2000. Now waiting for connection...

At this time, open another terminal. I'm calling it "Terminal2".
In Terminal2, give as:
    msp430-gdb -q a.out

Here, 'a.out' is the LaunchPad-specific executable binary obtained by cross-compiling the above sample program.

Now, connect to the remote machine already waiting in port 2000 as:
    (gdb) target remote localhost:2000

An acknowledgement message will be displayed as:
    Remote debugging using localhost:2000
    0x0000fc00 in _reset_vector__ ()

If you check back in Terminal1, messages similar to the following will have been displayed:
    Client connected from 127.0.0.1:47558
    Clearing all breakpoints...
    Reading 2 bytes from 0xfc00

The current states of the two terminals is as shown:

Fig 2. Terminal1 (left side)  and Terminal 2 (right side)

On listing 'led1.c' in Terminal2, the memory addresses from which the bytes are read will be displayed in Terminal1, simultaneously.

Fig 3. Listing the sample program

Fig 4. Single stepping through runtime libraries

On further single steps from this point, the runtime libraries through which the control passes until main( ) is reached, can be observed directly !!!
Notice that a considerable number of bytes have been read.

Now, single step till the instruction 'P1OUT = 0x01' is reached.

The Action

At this point, the next single step will cause it to execute, which will pass a high voltage (binary 1) to the red led on the LaunchPad, i.e., do it, and see the red LaunchPad led (P1.0) flash bright !!!

On next step, a binary 0 is passed to P1.0, causing it to be off.

Single step again, and see the green LaunchPad led (P1.6) flash before your eyes !!!

Turn it off too, and keep on single stepping, until you relish the wonderful thing thats happening infront of you ... This is GDB at its best !!!

At all these points, the memory addresses from which reading takes place are displayed in Terminal1.

N. B.

• Properly exit from both mspdebug in Terminal1 and GDB in Terminal2, before disconnecting the LaunchPad from the system.
• Exit from GDB in Terminal2 first, and then mspdebug in Terminal1.

Addendum

It was one of the cutest moments, to actually 'see' GDB in work.

I am crazy on LaunchPad !!!

Switching on the LaunchPad LEDs ...

Installation

The basic amenities are:

• mspgcc
• libusb-dev
• libreadline-dev
• mspdebug

After these are installed, msp-430-gcc or msp-430-gcc-4.4.3 can be used to cross-compile the C code.

The 'libusb-dev' library contains necessary libraries for sucessfully connecting the LaunchPad through the USB cable.

The 'libreadline-dev' library is for enabling history for the commands typed inside the 'mspdebug' environment.

Ensure that the LaunchPad has been detected by:

    dmesg | tail

Your LaunchPad will be assigned to the device: /dev/ttyACM0.

The mspdebug is used for interacting with, erasing or burning the flash memory of the MSP chip. It also allows to debug the downloaded program present inside the MSP chip flash memory, through the inbuilt JTAG or Spy-By-Wire support.

The eZ430-RF2500 tool of the mspdebug supports the USB connection and also provides Spy-By-Wire debugging.

Switch on your LEDs !!!

A sample program led2.c, which lights up both the LEDs on th LaunchPad when the switch S2 on P1.3 is pressed.

Fig 1. The sample program

First, cross-compile the code.

    msp430-gcc-4.4.3 -g led2.c

Now connect the LaunchPad. Then:

    sudo mspdebug rf2500

Fig 2. Inside mspdebug

To download the code, use:

    (mspdebug) prog a.out

Fig 3. Downloading the code

Now run it, as:

    (mspdebug) run

Fig 4. Running the code

The Addressing Modes in the MSP430 Family

Register Mode

mov.w R4,R5 ; move (copy) word from R4 to R6

It is the fastest, with only 1 machine cycle needed.
Any of the 16 registers can be used as source or destination.

Special cases:

• PC - it will be autoincremented before it is used as source
• Both PC and SP must be even, because they are always used as words. so  LSB discarded if they are used as destination
• CG2 - it reads 0 as source

for byte operations:

• operand is taken from lower byte only
• writing is performed to lower byte only, upper byte is cleared

To use the upper byte in a regiser as source, 'swpb' may be used.

Indexed Mode

Similar to arrays.

mov.b 3(R5),R6 ; load byte from address 3+(R5) into R6

Here, base address is 3.
Indexing can be used for the source or destination part.

Symbolic Mode (PC Relative)

When PC is used as the base address in the indexed mode, its called symbolic mode by TI. The offset to be added to the PC is given as the constant.

mov.w Loop,R6 ; load word Loop into R6

Assembler replaces this as:

mov.w X(PC),R6 ;

where X = Loop - PC, is the offset in this case. It is caluclated by the assembler, which also performs autoincrementing of PC.

In MSP430, absolute addressing can reach all the memory map. The symbolic mode is mainly meant for MSP430X, etc.

Absolute Mode

This is a special case where the constant in the indexed mode is the absolute address of the data. Since the constant is already the final address, the base must be taken as an address of 0. Usually the SR is selected for this purpose. It behaves as 0 when used as the base, i.e, this is one instance when the SR behaves as a constant generator (CG1).

Absolute addressing is shown by the prefix &.

mov.b P1IN,R6 ; load byte P1IN into R6

It is replaced by the assembler as:

mov.b P1IN(SR),R6 ;

P1IN is the offset, and SR behaves as 0.

SP-Relative

This is not a separate mode in itself. At any time, any value pushed into the stack previously can be accessed, by offseting a suitable amount from the SP. For example:

mov.w 2(SP),R6 ;

Indirect Register Mode

This is available only for the source. It is indicated by the sign @. It means that the contents of a register is used as the address of the operand, i.e, the register contains a "pointer" to the actual operand.

mov.w @R5,R6 ; load word from address pointed to by R5

This is similar to indexed addressing with base address 0. It saves a word of program memory, hence makes it faster.

This mode cannot be used for destination. Using indexed addressing instead:

mov.w R6,0(R5) ; store word from R6 into address 0+(R5)

There is a penalty that a word 0 must be stored in the program memory, and fetched. The constant generator cannot be used.

Indirect Autoincrement Register Mode

This is also available only for the source. It is indicated by a @ in the front, and a + as suffix. Here, the register is used as a pointer as in the indirect register mode. After this, the value in the register is autoincremented by 1 if a byte has been fetched, or by 2 if a word has been fetched.

mov.w @R5+, R6

Since this mode cannot be used for destination, the indexed addressing mode must be used and then explicitly incrementing the value of the register appropriately. Obviously, two instructions would be required.

N.B.

• MSP430 only has postincrement addressing.
• In all the addressing modes, all operations on the first address are fully completed before the second address is evaluated.

Immediate Mode

It is a special case of autoincrement addressing that uses program counter PC. For example:

mov.w @PC+,R6 ;

Here, after the instruction pointed to by PC has been fetched, PC is autoincremented, i.e., PC now points to the next instruction. This particular instruction will be the one copied into R6.

The MSP430 Central Processing Unit

MSP430 has 4 special purpose and 12 general purpose registers.

Fig 1. The MSP430 LaunchPad from TI

The registers in MSP430 are:

Fig 2. The registers in MSP430

Program Counter (PC)

The program counter stores the address of the instruction which is to be executed next.

For the execution of each instruction, first the address stored in the PC is placed in the address bus. Then, the instruction stored in this address is fetched. Meanwhile, the PC is automatically incremented by 2, i.e, PC now contains the address of the next instruction. The current instruction is now executed, and the next instruction fetched simultaneously.

This is the normal procedure, unless a jump instruction is encountered. In such cases, the PC is incremented by an offset contained in the opcode of the jump instruction. For interrupts and subroutines, the return address needs to be stored in the stack pointer before jumping.

An instruction comprises of 1-3 words, which are aligned to even addresses. So the LSB is hardwired to zero.

Stack Pointer (SP)

In MSP 430, the top of the RAM (12b bytes) is initially allotted to the stack pointer. Further writings into the stack are performed at lower addresses (goes downwards).
Also, the lsb of a stack address is always hardwired to zero, i.e., stack addresses always point to words. If only a byte is written into the stack, then one byte will be wasted to preserve this alignment.

In assembly language, after a reset, the stack pointer must be explicitly initialized to 0x280.


Predecrement addressing (Pushing) - To insert a new value into the stack, first the stack pointer is decremented by 2, then writing is performed.
Postincrement addressing (Popping) - To delete the current value in the stack pointer, first the value is deleted, then the stack pointer is incremented by 2.

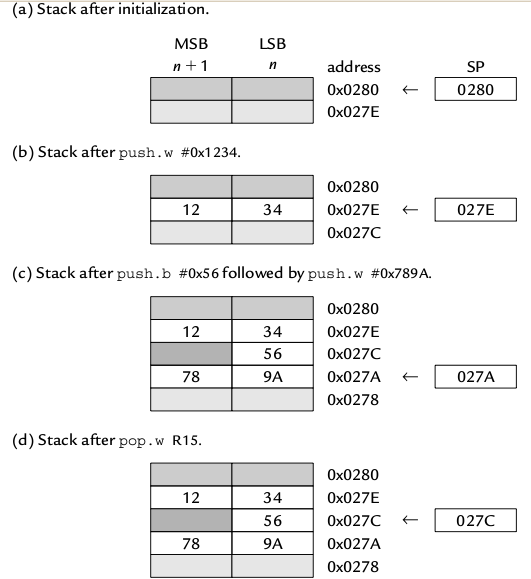

Fig 3. Basic stack operations in MSP430

Status Register (SR)

Fig 4. The Status Register

N - Negative Flag
Z - Zero Flag
C - Carry flag
V - Signed Overflow Flag
GIE - General Interupt Enable
SCG1, SCG0, OSC OFF, CPU OFF - Control of Low Power Modes


The SR also acts as constant generator CG0.


Constant Generator (CG0, CG1)
Both R2 and R3 are used to generate 6 most frequently used constants. This saves fetching time. The constant generated depends on the addressing mode used.

General Purpose Registers
There are 12 of them, R4 - R15. They can be used to store address or data, since both are 16 bit in the MSP430 family. This leads to considerable simplification in the operations.

The MSP-EXP430G2 Development Board

First of all, thanks to Pramode Sir for allowing me to lay my hands on this beauty !!!

The MSP-EXP430G2 Texas Instruments (TI) Launchpad is a $4.30 (only!) Development Board for the MSP430 family from Texas Instruments (TI).

The 14 pin DIP chip shown in the pictures is a MSP430G2231.

Fig 1. Top Side View.

Overview

The original MSP430 was introduced in the late 1990's. In its currrent form, it is a decent midrocontroller with a 16-bit processor having von-Neumann architecture. It is primarily designed for low power applications.

MSP430 is a 16-bit microcontroller, with obviously, a 16 bit data bus and a 16 bit address bus. Its address space is therefore, 2^16 = 64KB of memory. The registers in its CPU are also 16 bit. Hence, machine language instructions can be used with ease whether it be local variables, address or data. Note that MSP430X has extended registers, and a wider address bus and can handle upto 1 MB of memory.

It can be said to be a RISC, but unlike a pure "RISC", it can perform arithmetic operations directly on values in memory. Overall, the MSP430 is one of the simplest microcontrollers from Texas Instruments (TI).

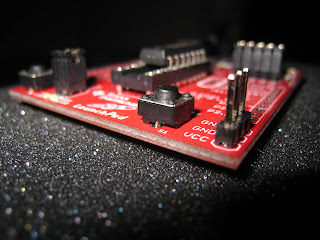

Fig 2. Side View.

Its all in the name ...

The name MSP stands for Mixed Signal Processor (MSP). It indicates that the device can take analog signals as input, and there are also analog to digital converters with a resolution of upto 16 bits.

The letter after MSP430 shows the type of memory.

    F - Flash memory

    C - ROM

For ASSPs, there is a second letter, to indicate the type of measurement.

    E - electricity

    W - water

    G - signals with a gain stage and op-amps in-between

Next digit shows family, and final 2 or 3 digits identify the specific device.

Fig 3. Top Front View.

Features

• A very small and efficient CPU with 16 bit registers.
• Specially designed low power modes.
• No special instructions are needed to put the device in a low-power mode. The mode is controlled by the respective bits in the status register. If an interrupt occurs, MSP430 awakens and returns back to the low power mode smoothly, after the particular interrupt has been serviced.
• There is an internal Digitally Controlled Oscillator (DCO) which clocks the CPU. It is capable of restarting in 1 us, thus making the device to wake up from standby or return to low power mode very quickly.
• There are various low power modes, differing in how much area of the device is active, and how long it takes to restart.
• It is compatible with a wide range of peripherals used for various purpos
• It can drive Liquid Crystal Displays (LCD) directly.
• Some are classified as Application Specific Standard Products (ASSP), and used for specialized purposes.
